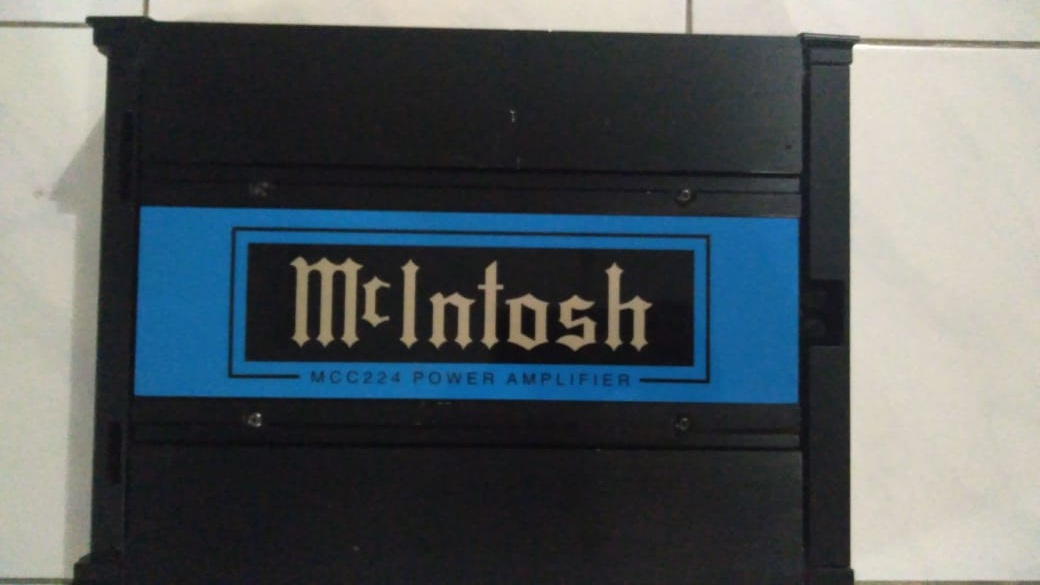

McIntosh MCC 224

Description

Specifications:

55w RMS x4 @ 4 Ohms ( 4channel )
2x 55w + 1x110w RMS x4 @ 4 Ohms ( 3 channel )
110w RMS x2 @ 4 Ohms Bridged ( 2 channel )
Power Band: 20Hz-20,000Hz
THD: 0.005%
Headroom: 1.0dB
Frequency Response: 20Hz-20,000Hz, +/- 0.25dB
Input Sensitivity: 0.5v-8v
S/N Ratio: 105dB
DC Input Voltage: 12.0v
Current Consumption: 2.5A idle, 40A Rated
Dimensions: 3L x 12.5W x 13.7L Inches
MOSFET Pulse Width Modulated Power Supply
Configurable to 4, 3, or 2 Channels
Fully Discrete Design
High Current Output (2 Ohm Stable)

Best treatment only at jenggoaudio.

*beberapa gambar untuk referensi dari modifikasi.com
